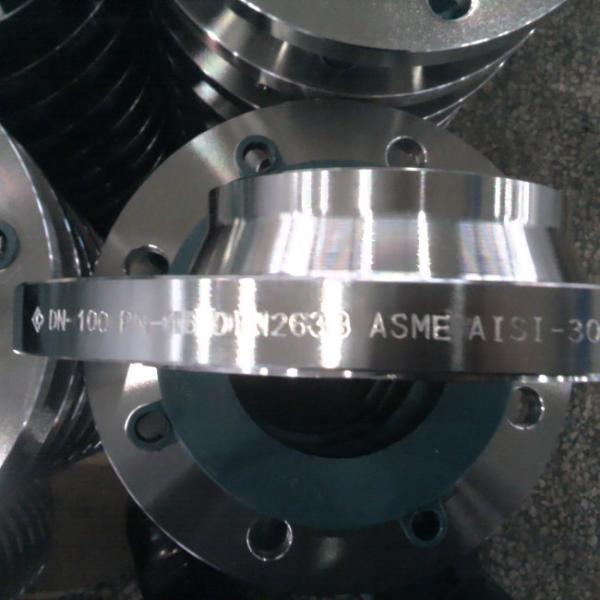

DIN 2633 PN16 8 Inch Weld Neck Flange AISI 304/L Stainless Steel

Brand Name : Kasugai

Model Number : DIN2633 PN40 AISI 304/L

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L / C , T / T

Supply Ability : 500 ton per month

Delivery Time : 30 - 60 working days

Packaging Details : Seaworthy Packng

Product Name : DIN2633 PN16 AISI 304/L German Standard Stainless Steel Flange

Size Range : DN10 to DN400

Pressure Class : PN16

Standards : AISI 304/L

Contact Now

DIN2633 PN16 AISI 304/L German Standard Stainless Steel Flange

Product Information:

Product Name DIN2633 PN40 AISI 304/L German Standard Stainless Steel
Size Range DN10 to DN400
Pressure Class PN16
Standards AISI 304L
Face Type WN-Weld Neck
Specification DIN2633

Standard & Materials: AISI 304L

The SAE/ANSI 304 (AISI 304) is the most commonly available and used type of stainless steel. It is also referred to as 18/8 stainless steel, A2 stainless steel (as per the ISO 3506), or 304S15 (as per the British Standard). This is an austenitic chromium-nickel alloy which practically means that it has a very high corrosion resistance. It is also nonmagnetic and can’t be hardened through heat treatment. As AISI 304 can withstand extremely corrosive environments and can be shaped, machined and welded relatively easy, it is very popular for a wide range of applications.

AISI 304/L Chemical Composition (%)

Grade C, max Cr Mn, max Ni P, max S, max Si, max
AISI 304 0.08 18~20 2 8~10.5 0.045 0.03 1
AISI 304L 0.03 18~20 2 8~12 0.045 0.03 1

AISI 304/L Mechanical Properties

Mechanical Properties 304 304L
Hardness, Knoop 138 158
Hardness, Rockwell B 70 82
Hardness, Vickers 129 159
Tensile Strength, Ultimate 505 MPa 564 MPa
Tensile Strength, Yield 215 MPa 210 MPa
Elongation at Break 70% 58%
Modulus of Elasticity 193~200 GPa 193~200 GPa
Charpy Impact 325 J 216J

DIN2633 PN16 Flange Dimensions (mm)

DIN 2633 PN16 8 Inch Weld Neck Flange AISI 304/L Stainless Steel

DN d1 D b k h1 d3 S r h2 d4 f n d2 Weight (kg)
10 14.0 90 14 60 35 25 1.8 4 6 40 2 4 14 0.58
15 20.0 95 14 65 35 30 2.0 4 6 48 2 4 14 0.65
20 25.0 105 16 75 38 38 2.3 4 6 58 2 4 14 0.95
25 30.0 115 16 85 38 42 2.6 4 6 68 2 4 14 1.19
32 38.0 140 16 100 40 52 2.6 6 6 78 2 4 18 1.67
40 44.5 150 16 110 42 60 2.6 6 7 88 3 4 18 1.85
50 57.0 165 18 125 45 72 2.9 6 8 102 3 4 18 2.81
100 108.0 220 20 180 52 125 3.6 8 12 158 3 8 18 4.54
125 133.0 250 22 210 55 150 4.0 8 12 188 3 8 18 6.28
150 159.0 285 22 240 55 175 4.5 10 12 212 3 8 22 7.75
250 267.0 405 26 355 70 285 6.3 12 16 320 3 12 26 16.26
350 368.0 520 30 470 82 390 8.0 12 16 438 4 16 26 28.95
400 419.0 580 32 525 85 445 8.0 12 16 490 4 16 30 36.30
